Overview

Jupyter CadQuery is the viewer for JupyterLab: models appear in a sidecar panel beside the notebook, in a split window, or directly in a cell's output. It is a single Python package — the JupyterLab extension ships prebuilt inside its cad-viewer-widget dependency, so there is no extension build step and no Node.js involved.

Key features

  • The complete CAD Viewer as a JupyterLab widget: navigation tree, clipping and zebra tools, measurement and analysis tools, materials and Studio and animation — it behaves exactly as in the other viewers, so all of that is documented once, in the shared chapters.
  • Sidecars, windows and cells: open_viewer("CAD") docks a viewer beside the notebook, anchor="split-top" and friends open it as a separate JupyterLab window, and without a sidecar the output lands in the cell itself. Sidecars and windows resize with their container, either filling it or keeping an aspect ratio.
  • Several viewers at once, each addressed by its title rather than a port — including measuring in two viewers side by side.
  • Auto display: a CadQuery or build123d object as the last expression of a cell is shown without a show.
  • Replay for CadQuery objects: step through the fluent-API calls that built an object and see each intermediate result.
  • Export as a standalone HTML page, and notebooks converted with nbconvert keep their viewers.
  • No sockets and no ports: the transport is Jupyter's own communication channel, so it works wherever JupyterLab works.
  • Settings stored in ~/.jcq_config — see Workspace Config.
  • Can be tried on binder without installing anything — see Installation.

Outside JupyterLab — a plain Python process, an editor of your choice — the same show commands talk to OCP Viewer in a browser tab.

In pictures

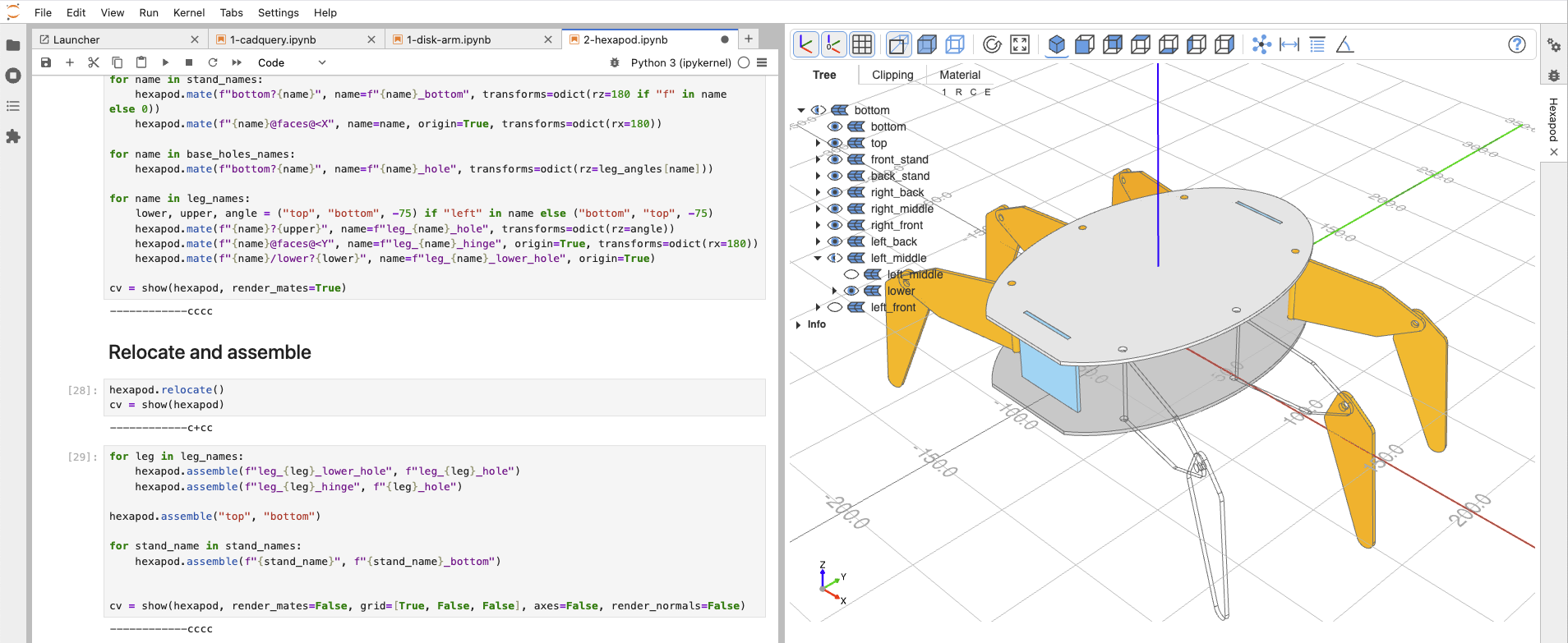

The viewer with a build123d hexapod, in a sidecar:

Hexapod

Measurement mode: distances between objects, angles between edges and faces, and the properties (center, area, volume) of what is selected:

Measurement

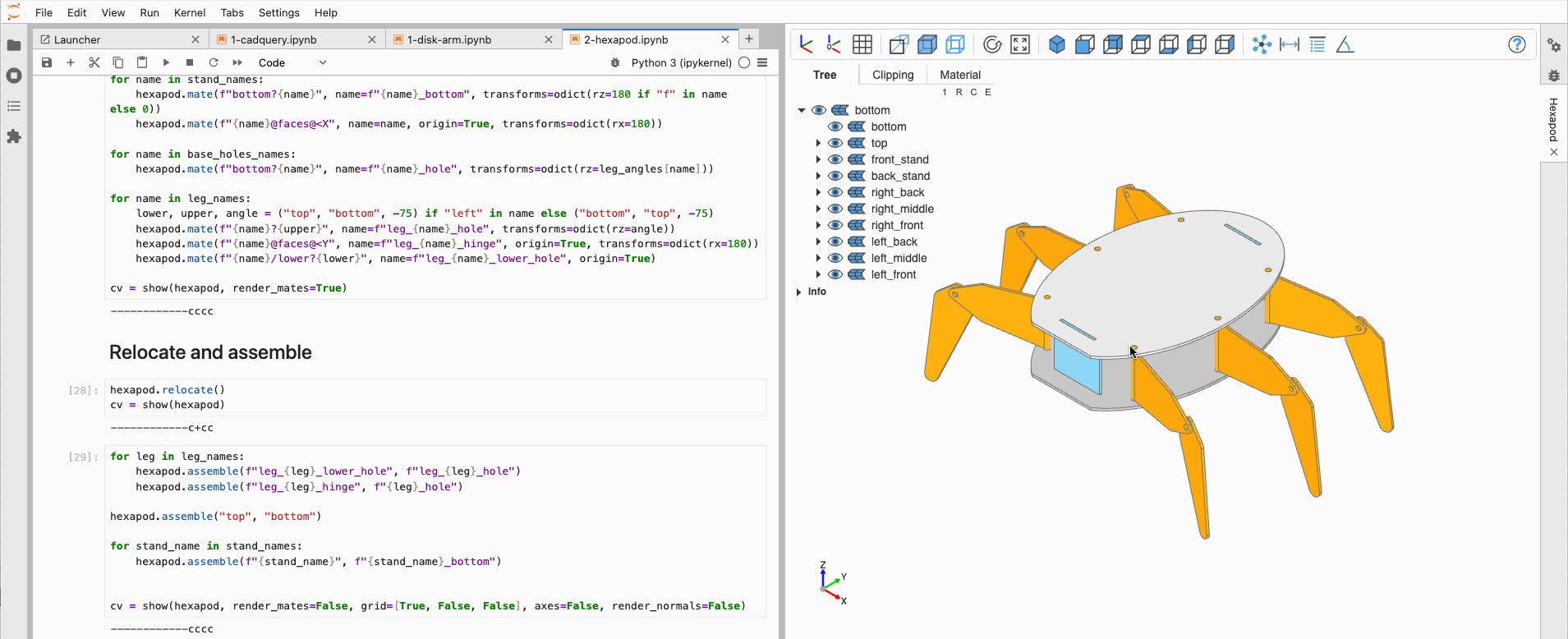

The animation system exploding an assembly around the origin:

Exploded quadruped

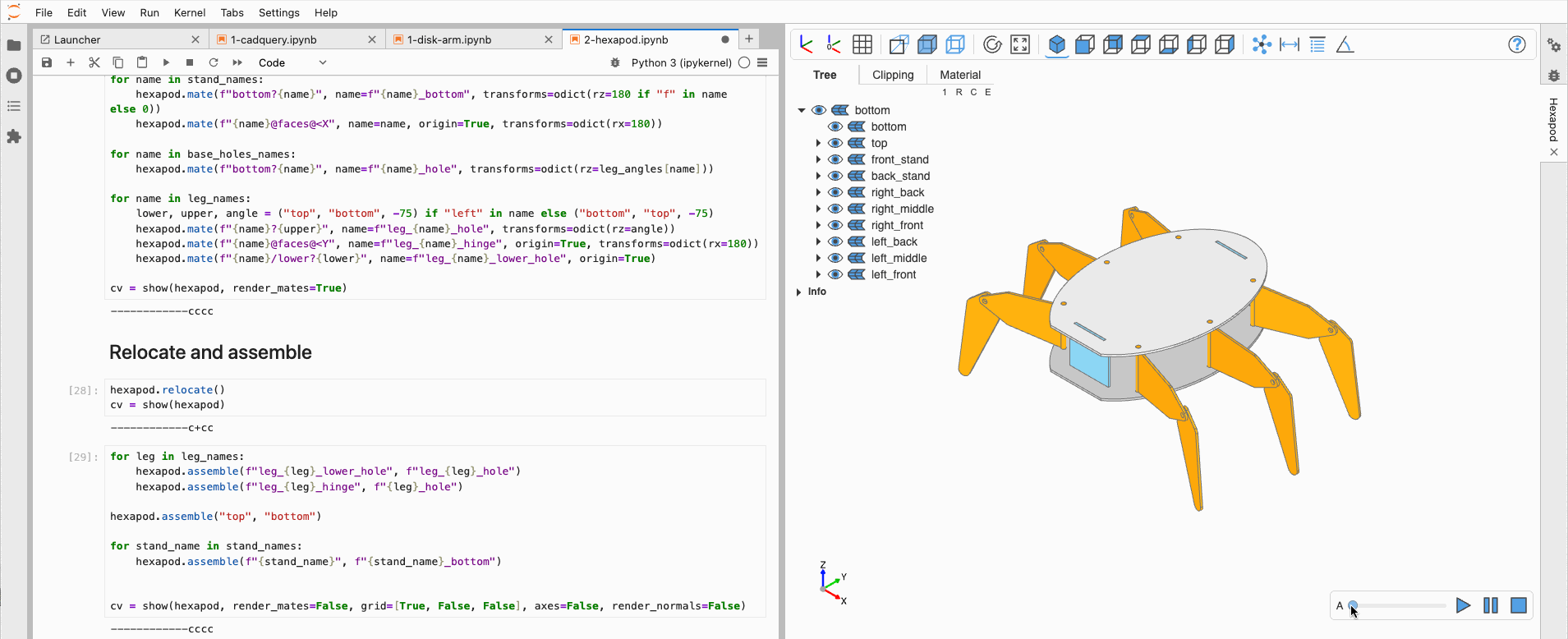

and a self-defined animation, the crawling hexapod:

Animated hexapod

The notebooks behind these pictures are in the repository's examples folder.

Continue with Installation.
