Show all
show_all¶
Show every CAD object in the current scope (locals()) of the Python interpreter. Hosts with a visual debugger (e.g. ocp_vscode) call this at every debugger step.
Command¶
show_all(variables=None, exclude=None, classes=None, include=None, <keyword arguments>)
Arguments¶
Parameters
| Parameter | Description |
|---|---|
variables |
Only show objects with names in this list of variable names, i.e. do not use all from locals() |
exclude |
List of variable names to exclude from show_all |
classes |
Only show objects which are instances of the classes in this list |
include |
List of variable names that should be shown even though they would be filtered out by classes. Only takes effect when classes is set |
Valid keywords for show_all are the same as for show, including the viewer-specific keywords (port, viewer, anchor, cad_width, height, pinning) — which of them your viewer accepts is the same as for show.

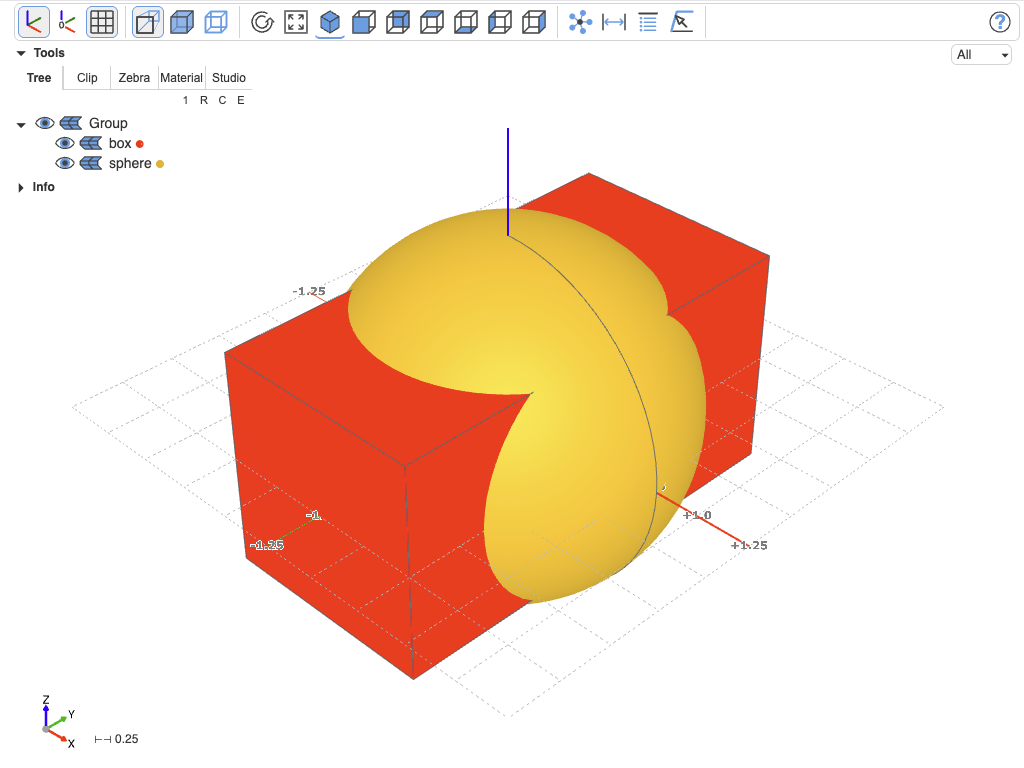

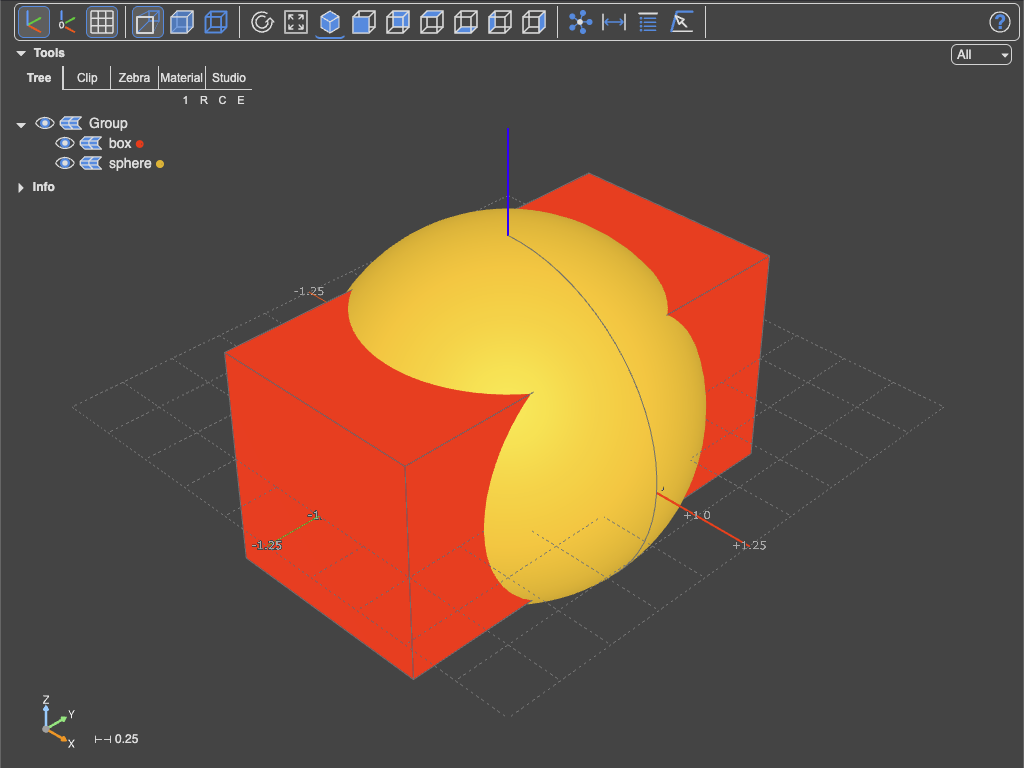

Example¶
from ocp_viewer_core.viewer import *
from build123d import *
set_defaults(axes=True, center_grid=True, grid=(True, False, False))
box = Box(1, 2, 1)
chamfer(box.edges(), 0.4)
sphere = Sphere(0.8)
box.color = "red"
show_all(ortho=False)
