show_object¶

Incrementally show CAD objects in the viewer. The command supports the CQ-Editor parameters obj, name and options plus additional viewer specific args.

Command¶

show_object(obj, name=None, options=None, port=None, <keyword arguments>)

Arguments¶

Parameters

Parameter	Description
`obj`	The CAD object to be shown

Keywords for show_object

Keyword	Description
`name`	The name of the CAD object
`options`	A dict of color and alpha value: `{"alpha": 0.5, "color": (64, 164, 223)}`, with 0 <= alpha <= 1.0 and color as a 3-tuple of values between 0 and 255
`parent`	Add another object, usually the parent of e.g. edges or vertices with alpha=0.25
`clear`	In interactive mode, clear the stack of objects to be shown (typically used for the first object)
`update`	Update the object (remove old version)
`mode`	A Render value for this object (default=None, i.e. `Render.ALL`). `Render.ALL`: show faces and edges, `Render.EDGES`: show edges only, `Render.FACES`: show faces only, `Render.NONE`: hide object
`material`	Material object or material name string for this object (default=None)
`port`	The viewer to address when several are open — one of the viewer-specific keywords; see Viewer-specific keywords for which viewer accepts which (port, viewer, anchor, cad_width, height, pinning)
`progress`	Show progress of tessellation, None is no progress indicator (default="-+c"). Per object: "-": is reference, "+": gets tessellated with Python code, "": gets tessellated with native code, "c": from cache

The valid keywords to configure the viewer (**kwargs) are the same as for show, including the viewer-specific keywords.

Managing the object stack¶

reset_show()

Reset the object stack so the next show_object starts from a clean slate — typically at the top of a file that is executed repeatedly, to clean the object buffer.

show_object(obj, clear=True)

Restart a new object stack with this object.

For more detail, see show

Example¶

from ocp_viewer_core.viewer import show_object, reset_show, set_defaults, Collapse

import cadquery as cq

reset_show()  # use for repeated cell execution to clean object buffer

set_defaults(axes=True, transparent=False, collapse=Collapse.LEAVES, grid=(True, False, False))

box = cq.Workplane().box(1, 2, 1).edges().chamfer(0.4)

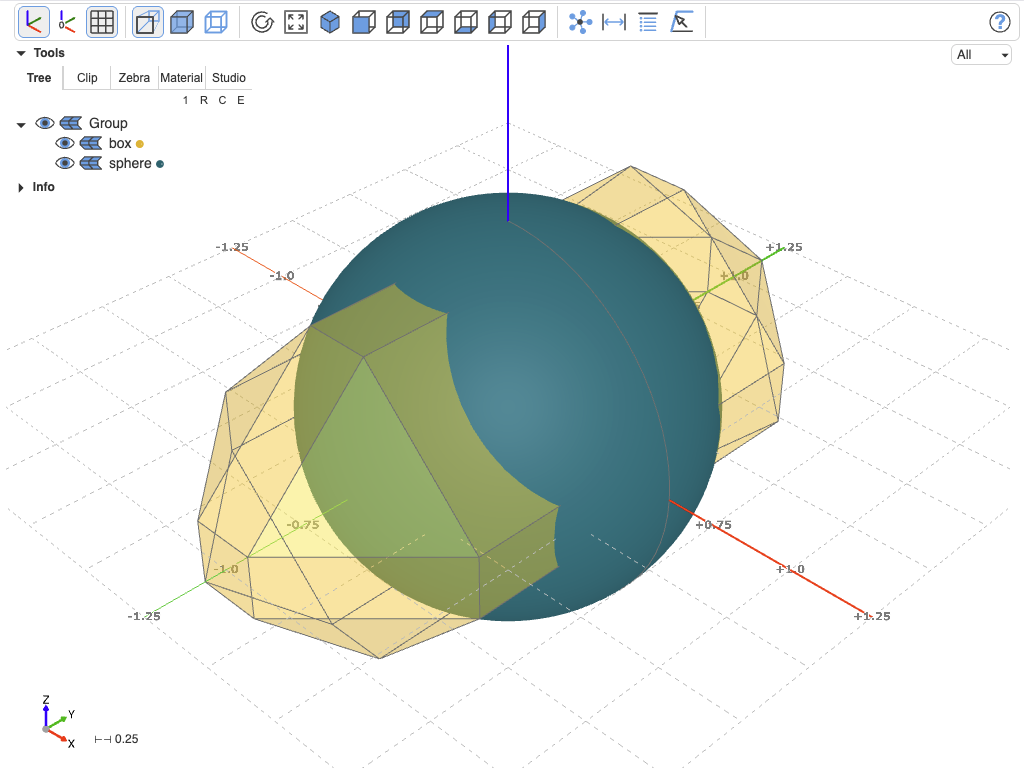

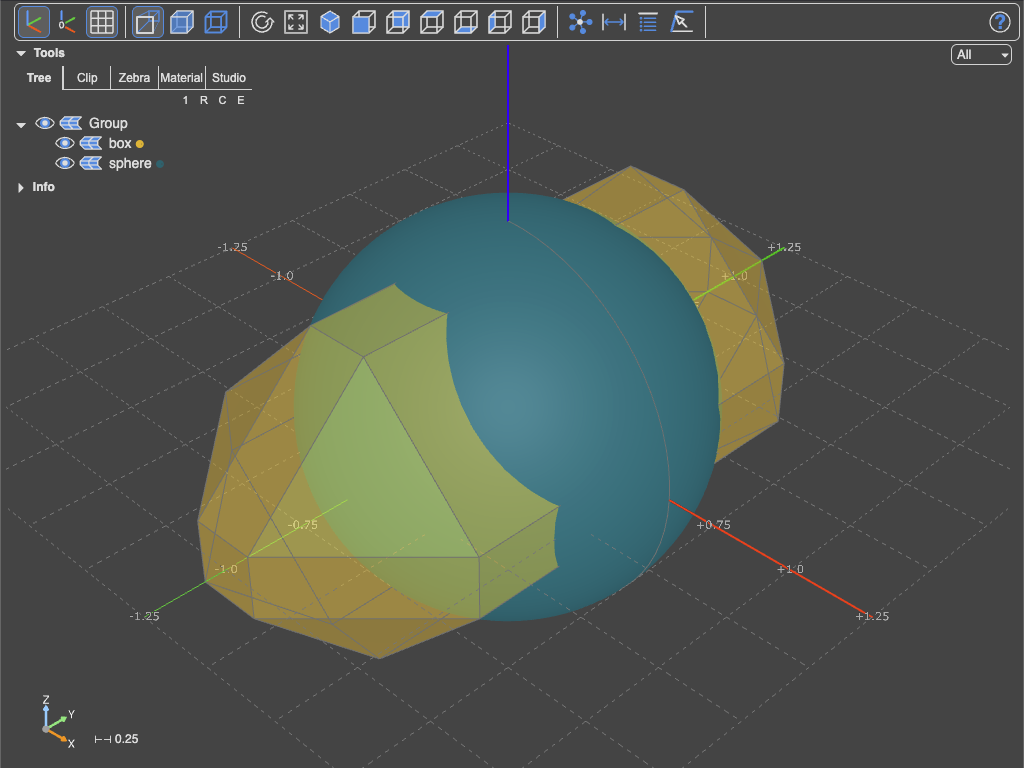

show_object(box, name="box", options={"alpha": 0.5})

sphere = cq.Workplane().sphere(0.6)

show_object(
    sphere,
    # show_object args
    "sphere",
    {"color": (10, 100, 110)},
    # viewer args
    ortho=False,
    zoom=1.25
)
