    three-cad-viewer

    A threejs based CAD viewer

    A CAD viewer component based on three.js. The CAD viewer can visualize low level threejs objects (tessellated objects)

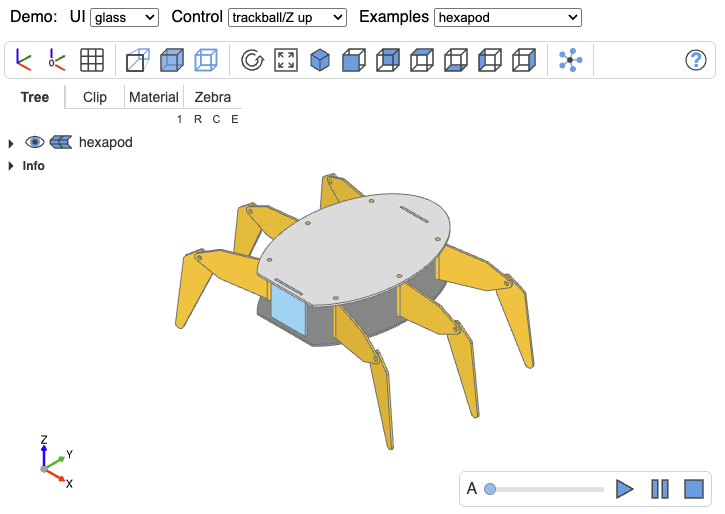

    three-js-cad-viewer

    Live Examples

    1. Install yarn on your system (ie. npm i -g yarn) if not already done;
    2. Clone the repository: git clone https://github.com/bernhard-42/three-cad-viewer.git && cd three-cad-viewer;
    3. Run yarn install to install dependencies
    4. Start web server: yarn run start and go to the page displayed in the logs (ie. 127.0.0.1:8080)
    5. Build project: yarn run clean; yarn run build; yarn run docs;

    A Shape contains the attributes

    • vertices (the BufferGeometry attribute position)
    • triangles (the triangle index of the BufferGeometry)
    • normals (the BufferGeometry attribute normal)

    as described e.g. in BufferGeometry or Three.js Custom BufferGeometry

    plus additionally the attribute

    • edges

    to define which edges of the mesh should be shown.

    The 4 attributes (vertices, triangles, normals, edges) define an object called Shape, see Class Shape

    Multiple Shapes can be arranged as an hierarchical tree. This tree is modelled as Shapes object, see Class Shapes

    The ids on each level define a path to each node and leaf of tree, e.g. /level1/level2_obj1/level3_object7 and so on.

    For each leaf of the tree a 2 dim tuple needs to be provided to define whether shape and edges should be shown

    • 0 = shape/edges hidden
    • 1 = shape/edges shown
    • 3 = shape/edges does not exist

    The value 2 is reserved for nodes and shows a mixed state, i.d. some of the children are show, some not.

    For the States object, see Class States

    <html>
    <head>
    <link rel="stylesheet" href="./dist/three-cad-viewer.css" />
    <script type="module">
    import { Viewer, Display, Timer } from "./dist/three-cad-viewer.esm.js";

    function nc(change) {
    console.log("NOTIFY:", JSON.stringify(change, null, 2));
    }

    const displayOptions = {
    cadWidth: 850,
    height: 525,
    treeWidth: 240,
    theme: "browser",
    pinning: true,
    keymap: {
    shift: "shiftKey",
    ctrl: "ctrlKey",
    meta: "metaKey",
    },
    };

    const renderOptions = {
    ambientIntensity: 1.0,
    directIntensity: 1.1,
    metalness: 0.3,
    roughness: 0.65,
    edgeColor: 0x707070,
    defaultOpacity: 0.5,
    normalLen: 0,
    };
    const viewerOptions = {
    target: [0, 0, 0],
    up: "Z",
    };

    const shapes = {
    version: 3,
    parts: [
    {
    id: "/Group/Workplane(Solid)",
    type: "shapes",
    subtype: "solid",
    name: "Workplane(Solid)",
    shape: {
    vertices: [
    -0.5, -0.5, -0.5, -0.5, -0.5, 0.5, -0.5, 0.5, -0.5, -0.5, 0.5,
    0.5, 0.5, -0.5, -0.5, 0.5, -0.5, 0.5, 0.5, 0.5, -0.5, 0.5, 0.5,
    0.5, -0.5, -0.5, -0.5, 0.5, -0.5, -0.5, -0.5, -0.5, 0.5, 0.5,
    -0.5, 0.5, -0.5, 0.5, -0.5, 0.5, 0.5, -0.5, -0.5, 0.5, 0.5, 0.5,
    0.5, 0.5, -0.5, -0.5, -0.5, -0.5, 0.5, -0.5, 0.5, -0.5, -0.5,
    0.5, 0.5, -0.5, -0.5, -0.5, 0.5, -0.5, 0.5, 0.5, 0.5, -0.5, 0.5,
    0.5, 0.5, 0.5,
    ],
    triangles: [
    1, 2, 0, 1, 3, 2, 5, 4, 6, 5, 6, 7, 11, 8, 9, 11, 10, 8, 15, 13,
    12, 15, 12, 14, 19, 16, 17, 19, 18, 16, 23, 21, 20, 23, 20, 22,
    ],
    normals: [
    -1.0, -0.0, 0.0, -1.0, -0.0, 0.0, -1.0, -0.0, 0.0, -1.0, -0.0,
    0.0, 1.0, 0.0, -0.0, 1.0, 0.0, -0.0, 1.0, 0.0, -0.0, 1.0, 0.0,
    -0.0, 0.0, -1.0, -0.0, 0.0, -1.0, -0.0, 0.0, -1.0, -0.0, 0.0,
    -1.0, -0.0, -0.0, 1.0, 0.0, -0.0, 1.0, 0.0, -0.0, 1.0, 0.0,
    -0.0, 1.0, 0.0, -0.0, -0.0, -1.0, -0.0, -0.0, -1.0, -0.0, -0.0,
    -1.0, -0.0, -0.0, -1.0, 0.0, 0.0, 1.0, 0.0, 0.0, 1.0, 0.0, 0.0,
    1.0, 0.0, 0.0, 1.0,
    ],
    edges: [
    -0.5, -0.5, -0.5, -0.5, -0.5, 0.5, -0.5, -0.5, 0.5, -0.5, 0.5,
    0.5, -0.5, 0.5, -0.5, -0.5, 0.5, 0.5, -0.5, -0.5, -0.5, -0.5,
    0.5, -0.5, 0.5, -0.5, -0.5, 0.5, -0.5, 0.5, 0.5, -0.5, 0.5, 0.5,
    0.5, 0.5, 0.5, 0.5, -0.5, 0.5, 0.5, 0.5, 0.5, -0.5, -0.5, 0.5,
    0.5, -0.5, -0.5, -0.5, -0.5, 0.5, -0.5, -0.5, -0.5, -0.5, 0.5,
    0.5, -0.5, 0.5, -0.5, 0.5, -0.5, 0.5, 0.5, -0.5, -0.5, 0.5, 0.5,
    0.5, 0.5, 0.5,
    ],
    obj_vertices: [
    -0.5, -0.5, 0.5, -0.5, -0.5, -0.5, -0.5, 0.5, 0.5, -0.5, 0.5,
    -0.5, 0.5, -0.5, 0.5, 0.5, -0.5, -0.5, 0.5, 0.5, 0.5, 0.5, 0.5,
    -0.5,
    ],
    face_types: [0, 0, 0, 0, 0, 0],
    edge_types: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
    triangles_per_face: [2, 2, 2, 2, 2, 2],
    segments_per_edge: [1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1],
    },
    state: [1, 1],
    color: "#e8b024",
    alpha: 1.0,
    texture: null,
    loc: [
    [-0.0, -0.0, 0.0],
    [0.0, 0.0, 0.0, 1.0],
    ],
    renderback: false,
    accuracy: null,
    bb: null,
    },
    ],
    loc: [
    [0.0, 0.0, 0.0],
    [0.0, 0.0, 0.0, 1.0],
    ],
    name: "Group",
    id: "/Group",
    normal_len: 0,
    bb: {
    xmin: -0.5,
    xmax: 0.5,
    ymin: -0.5,
    ymax: 0.5,
    zmin: -0.5,
    zmax: 0.5,
    },
    };

    // 1) get the container
    const container = document.getElementById("cad_view");

    // 2) Create the CAD display in this container
    const display = new Display(container, displayOptions);

    // 3) Create the CAD viewer
    const viewer = new Viewer(display, viewerOptions, nc);
    // or viewer.clear() if the viewer exists

    // 4) Render the shapes and provide states for the navigation tree in this viewer
    viewer.render(shapes, renderOptions, viewerOptions);

    // 5) Dynamically add a second box offset by 2 units along X.
    // addPart(parentPath, partData) builds the absolute path from the
    // parent and the part's name: "/Group" + "/" + "Box2" = "/Group/Box2"
    const newPart = {
    version: 3,
    name: "Box2",
    type: "shapes",
    subtype: "solid",
    shape: {
    vertices: [
    1.5, -0.5, -0.5, 1.5, -0.5, 0.5, 1.5, 0.5, -0.5, 1.5, 0.5, 0.5, 2.5,
    -0.5, -0.5, 2.5, -0.5, 0.5, 2.5, 0.5, -0.5, 2.5, 0.5, 0.5, 1.5,
    -0.5, -0.5, 2.5, -0.5, -0.5, 1.5, -0.5, 0.5, 2.5, -0.5, 0.5, 1.5,
    0.5, -0.5, 2.5, 0.5, -0.5, 1.5, 0.5, 0.5, 2.5, 0.5, 0.5, 1.5, -0.5,
    -0.5, 2.5, -0.5, -0.5, 1.5, 0.5, -0.5, 2.5, 0.5, -0.5, 1.5, -0.5,
    0.5, 2.5, -0.5, 0.5, 1.5, 0.5, 0.5, 2.5, 0.5, 0.5,
    ],
    triangles: [
    1, 2, 0, 1, 3, 2, 5, 4, 6, 5, 6, 7, 11, 8, 9, 11, 10, 8, 15, 13, 12,
    15, 12, 14, 19, 16, 17, 19, 18, 16, 23, 21, 20, 23, 20, 22,
    ],
    normals: [
    -1, 0, 0, -1, 0, 0, -1, 0, 0, -1, 0, 0, 1, 0, 0, 1, 0, 0, 1, 0, 0,
    1, 0, 0, 0, -1, 0, 0, -1, 0, 0, -1, 0, 0, -1, 0, 0, 1, 0, 0, 1, 0,
    0, 1, 0, 0, 1, 0, 0, 0, -1, 0, 0, -1, 0, 0, -1, 0, 0, -1, 0, 0, 1,
    0, 0, 1, 0, 0, 1, 0, 0, 1,
    ],
    edges: [
    1.5, -0.5, -0.5, 1.5, -0.5, 0.5, 1.5, -0.5, 0.5, 1.5, 0.5, 0.5, 1.5,
    0.5, -0.5, 1.5, 0.5, 0.5, 1.5, -0.5, -0.5, 1.5, 0.5, -0.5, 2.5,
    -0.5, -0.5, 2.5, -0.5, 0.5, 2.5, -0.5, 0.5, 2.5, 0.5, 0.5, 2.5, 0.5,
    -0.5, 2.5, 0.5, 0.5, 2.5, -0.5, -0.5, 2.5, 0.5, -0.5, 1.5, -0.5,
    -0.5, 2.5, -0.5, -0.5, 1.5, 0.5, -0.5, 2.5, 0.5, -0.5, 1.5, -0.5,
    0.5, 2.5, -0.5, 0.5, 1.5, 0.5, 0.5, 2.5, 0.5, 0.5,
    ],
    obj_vertices: [
    1.5, -0.5, 0.5, 1.5, -0.5, -0.5, 1.5, 0.5, 0.5, 1.5, 0.5, -0.5, 2.5,
    -0.5, 0.5, 2.5, -0.5, -0.5, 2.5, 0.5, 0.5, 2.5, 0.5, -0.5,
    ],
    face_types: [0, 0, 0, 0, 0, 0],
    edge_types: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
    triangles_per_face: [2, 2, 2, 2, 2, 2],
    segments_per_edge: [1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1],
    },
    state: [1, 1],
    color: "#5b9bd5",
    alpha: 1.0,
    renderback: false,
    };
    viewer.addPart("/Group", newPart); // creates "/Group/Box2"

    // 6) Remove the part again by absolute path
    viewer.removePart("/Group/Box2");

    // 7) Update an existing part's geometry (see "Dynamic Scene Updates" below)
    viewer.updatePart("/Group/Box2", updatedPartData);
    </script>
    </head>

    <body>
    <div id="cad_view"></div>
    </body>
    </html>

    After the initial viewer.render(), parts can be added, removed, or updated without re-rendering the entire scene.

    addPart(parentPath, partData) creates new Three.js objects (meshes, edges, clipping stencils) from the part data and inserts them into the scene graph and navigation tree. removePart(path) disposes the Three.js objects and removes the part from the scene.

    viewer.addPart("/Group", partData); // creates "/Group/PartName"
    viewer.removePart("/Group/PartName");

    updatePart(path, partData) updates an existing part's geometry without tearing down and recreating the Three.js objects. When the mesh topology is unchanged (same number of vertices, triangles, and edge segments), vertex positions, normals, and edge coordinates are written directly into the existing GPU buffers — this is significantly faster than a remove/add cycle. When the topology differs (e.g. a re-tessellation changed the face or edge count), updatePart automatically falls back to a batched removePart + addPart so the caller does not need to handle this case.

    viewer.updatePart("/Group/PartName", updatedPartData);


    Each of the three methods individually recomputes the bounding box, rebuilds clipping stencils, and (for add/remove) rebuilds the navigation tree. In a loop over N parts this becomes the dominant cost. All three methods accept an optional { skipBounds: true } parameter that defers this work. Call updateBounds() once after the loop to perform a single recomputation for the entire batch:

    for (const part of partsToUpdate) {
    viewer.updatePart(`/Group/${part.name}`, part, { skipBounds: true });
    }
    for (const part of partsToAdd) {
    viewer.addPart("/Group", part, { skipBounds: true });
    }
    for (const path of pathsToRemove) {
    viewer.removePart(path, { skipBounds: true });
    }
    viewer.updateBounds();

    Add, remove, and update calls can be freely mixed within a single batch.

    updateBounds() rebuilds clipping stencils whenever the scene's bounding box grows beyond the region that stencils were previously built for. This rebuild is the most expensive part of the bounds update. When the maximum extent of the geometry is known upfront (e.g. the full parameter range of a slider), call ensureStencilSize() once after the initial render to pre-size the stencil region. All subsequent updateBounds() calls whose geometry stays within this region will skip the stencil rebuild entirely:

    viewer.render(shapes, renderOptions, viewerOptions);

    viewer.ensureStencilSize({
    xmin: -200,
    xmax: 200,
    ymin: -200,
    ymax: 200,
    zmin: 0,
    zmax: 300,
    });

    // All updates within these bounds are now stencil-rebuild-free

    The keymap serves two purposes:

    • Modifier keys (shift, ctrl, meta, alt) remap which physical modifier key is used for mouse interactions (e.g. shift-click to isolate, ctrl-rotate). Values are DOM event properties like "shiftKey", "ctrlKey", "metaKey", "altKey".
    • Action shortcuts map single keys (with or without Shift) to toolbar buttons, camera presets, tab switches, and animation control. Only plain keys are supported — Ctrl/Alt/Meta combinations are reserved for modifier-based mouse interactions.

    Click on the viewer to give it focus, then press shortcut keys to trigger actions. Button tooltips show [key] suffixes when shortcuts are configured.

    The default keymap:

    keymap: {
    // Modifier keys (remap physical keys for mouse interactions)
    shift: "shiftKey", ctrl: "ctrlKey", meta: "metaKey", alt: "altKey",
    // Toggle buttons
    axes: "a", axes0: "A", grid: "g", gridxy: "G",
    perspective: "p", transparent: "t", blackedges: "b",
    explode: "x", zscale: "L",
    distance: "D", properties: "P", select: "S",
    // Execute buttons
    reset: "R", resize: "r",
    iso: "0", front: "1", rear: "2", top: "3", bottom: "4", left: "5", right: "6",
    // Help
    help: "h",
    // Animation
    play: " ", stop: "Escape",
    // Tab selection
    tree: "T", clip: "C", material: "M", zebra: "Z",
    }

    Pass a partial keymap to override individual bindings — unspecified keys keep their defaults:

    const displayOptions = {
    keymap: { axes: "q", reset: "!" }, // only these two change
    };

    To understand the data format, a look at the simple 1 unit sized box might be helpful:

    Back to Github repo

    Control log verbosity with the built-in logger:

    import { logger } from "three-cad-viewer";

    // Default level is "warn" (only warnings and errors shown)
    logger.setLevel("debug"); // Enable all logging
    logger.setLevel("info"); // Info, warnings, and errors
    logger.setLevel("warn"); // Warnings and errors (default)
    logger.setLevel("error"); // Only errors
    logger.setLevel("silent"); // Disable all logging

    Track GPU resource allocation to inspect current state or detect memory leaks:

    import { gpuTracker } from "three-cad-viewer";

    // Check resource counts at any time
    console.log(gpuTracker.summary);
    // { geometry: 5, material: 10, texture: 1, total: 16 }

    // Log details of allocated resources
    gpuTracker.details();

    For detailed allocation info with stack traces:

    // Enable debug mode BEFORE creating the viewer
    gpuTracker.enableDebug();

    const display = new Display(container, displayOptions);
    const viewer = new Viewer(display, viewerOptions, nc);
    viewer.render(shapes, renderOptions, viewerOptions);

    // Inspect current allocations
    gpuTracker.details();
    // [1] geometry: BufferGeometry (shape) for /Assembly/Part1
    // Created at: 1234.56ms
    // Stack:
    // at NestedGroup.renderShape (nestedgroup.ts:425)
    // ...

    // After disposal, any remaining resources are potential leaks
    viewer.dispose();
    gpuTracker.details();

    The tracker is also available globally in the browser console as window.tcv_gpu.

    Run a web server in watch and debug mode

    yarn run debug


    For the deployment, see Release.md
